Weblogic Server SSL Configuration : Self Signed Certificate Configuration


Weblogic Server SSL Configuration : Self Signed Certificate Configuration


For concepts on self sign certificate and trusted certificate authority certificate please read my below post -

http://weblogicserveradministration.blogspot.com/2012/11/weblogic-ssl-trusted-certificate.html


The basic concept of configuring the self sigh certificate is -

1. Create public-private keypair OR you can say create identity OR you can say create keystore
2. Extract/export self sign certificate or say root certificate from above created
     keystore/identity/public-private keypair
3. Create trust keystore by importing above exported root certificate
4. Configure weblogic for identity and trust

Note :- Before going a head for below steps make sure you have jdk/bin on your path variable and you are able to run keytool otherwise you run below commands under jdk/bin directory and later place created .jks files to necessary directory

Steps

1. Create identity keystore ( or public-private keypair)

keytool -genkey -alias alias123 -keyalg RSA -keypass weblogic123 -keystore identity.jks -storepass weblogic321 -validity 365


  2. Since it's a self sign certificate so, Export root certificate from keystore

keytool -export -alias alias123 -file root.cer -keystore identity.jks -storepass weblogic321


3. Create trust keystore

keytool -import -alias alias123 -trustcacerts -file root.cer -keystore trust.jks -storepass weblogic321

Now you have identity.jks, trust.jks and root.cer


VERIFICATION


NOTE : - MAKE SURE TO RUN BELOW COMMAND INSIDE THE DIRECTORY WHERE YOU HAVE YOU .JKS AND .CER FILES OTHERWISE DEFINE COMPLETE PATH OF FILE ON BELOW COMMANDA EXPLICITELY

To List certificates inside identity keystore

keytool -list -v -keystore  identity.jks -storepass weblogic321

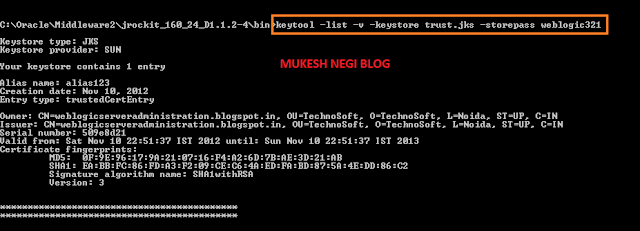

To list contents of trust keystore

keytool -list -v -keystore trust.jks -storepass weblogic321

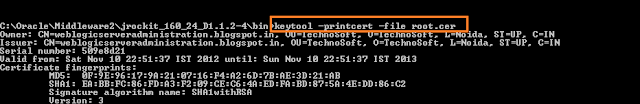

To view exported root certificate

keytool -printcert -file root.cer




4. Weblogic Level Configuration

Login to admin console, click on server, then click on -

4.1 keystore tab on right hand side, then for keystore: option select "custom identity and trust",
       then enter identity and trust path with storepass you have used


4.2 SSL tab on right hand side, then enter alias value and keypass you have used



5. Now enable SSL from admin console

Go to admin console, select server, under configuration select ssl checkbox and enter the desired port on which port you want to run ssl connection, now bring down weblogic and start again

Now access admin console and your application as https instead of http

admin console -  https://host:ssl_port/console


Next

Configure Weblogic Node Manager SSL Configuration


1. If running Stop your node manager

2. update nodemanager.properties file for -

2.1


KeyStores=CustomIdentityAndCustomTrust
CustomIdentityKeystoreType=jks
CustomIdentityKeyStoreFileName=C\:\\Oracle\\Middleware2\\jrockit_160_24_D1.1.2-4\\bin\\identity.jks
CustomIdentityKeyStorePassPhrase=weblogic321
CustomTrustKeystoreType=jks
CustomTrustKeyStoreFileName=C\:\\Oracle\\Middleware2\\jrockit_160_24_D1.1.2-4\\bin\\trust.jks
CustomTrustKeyStorePassPhrase=
CustomIdentityAlias=alias123
CustomIdentityPrivateKeyPassPhrase=weblogic123

Note : - Above contents from window, for unix/linux use proper path separator

2.1  set secure listener to true

SecureListener=true

2.3  update ListenAddress with proper host

like - ListenAddress=localhost

Since it's self sign certificate so this above step not really required but for safer side you can update

3. Since it's a self sign certificate so disable host name verification

Login to admin console
Go to server > select your server >Configuration>SSL
Click on advanced
select Hostname Verification as "NONE"
Save and activate changes.
Repeat above steps fore all servers in domain

4. Disable host name verification for Node manager

Add below parameter to your node manager startup file, -
unix/linux = startNodeManager.sh
window = startNodeManager.cmd

-Dweblogic.nodemanager.sslHostNameVerificationEnabled=false


Example -

"%JAVA_HOME%\bin\java.exe" %JAVA_VM% %MEM_ARGS% %JAVA_OPTIONS% "-Dweblogic.nodemanager.sslHostNameVerificationEnabled=false"
"-Dweblogic.nodemanager.sslHostNameVerificationEnabled=false" "-Djava.security.policy=%WL_HOME%\server\lib\weblogic.policy" "-Dweblogic.nodemanager.javaHome=%JAVA_HOME%" weblogic.NodeManager -v


5. Now change node manager "Type" as SSL from admin console

Login to admin console > select Machine option > select your configured machine > configuration tab > node manager sub tab > set "type" as SSL, save and activate changes

Start your node manager = make sure no error in node manager log file


you are done cheers!!!!
